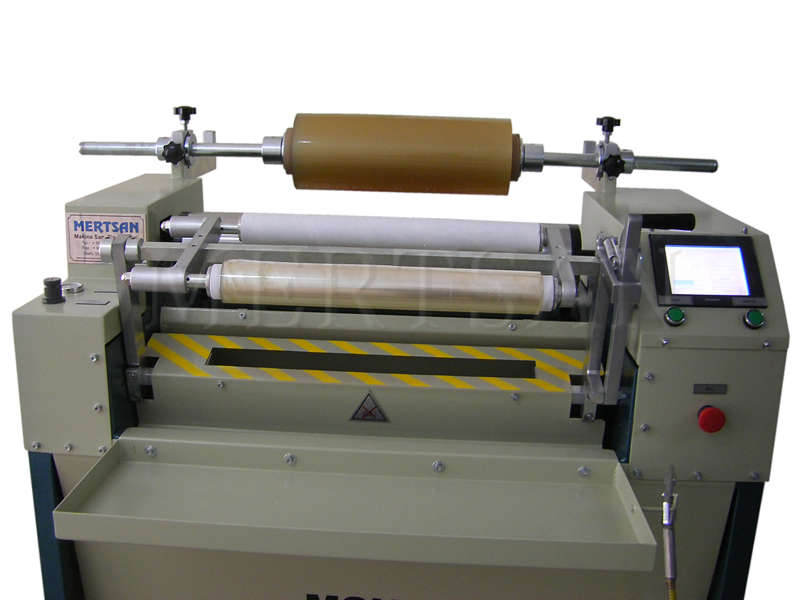

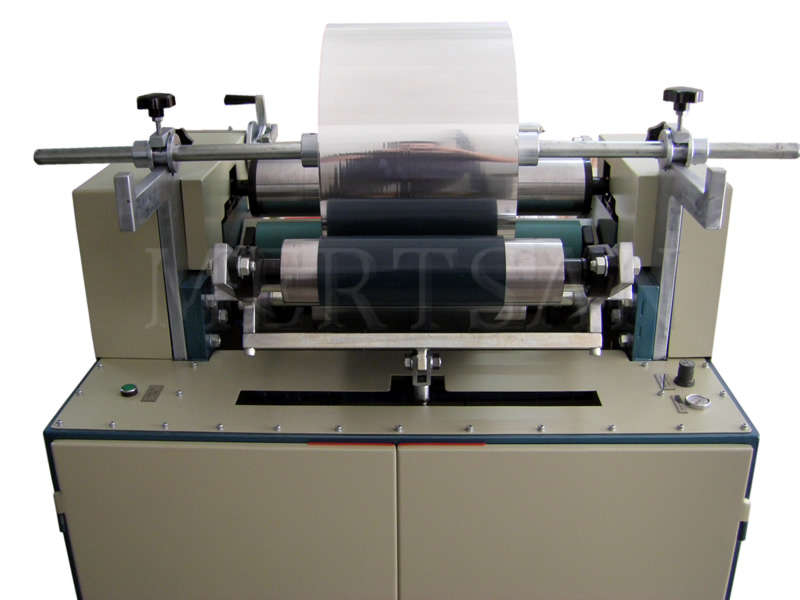

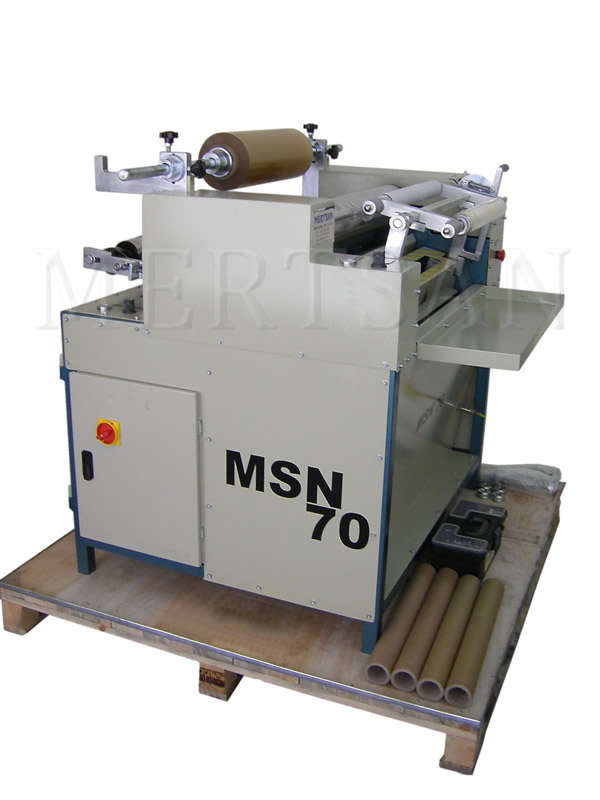

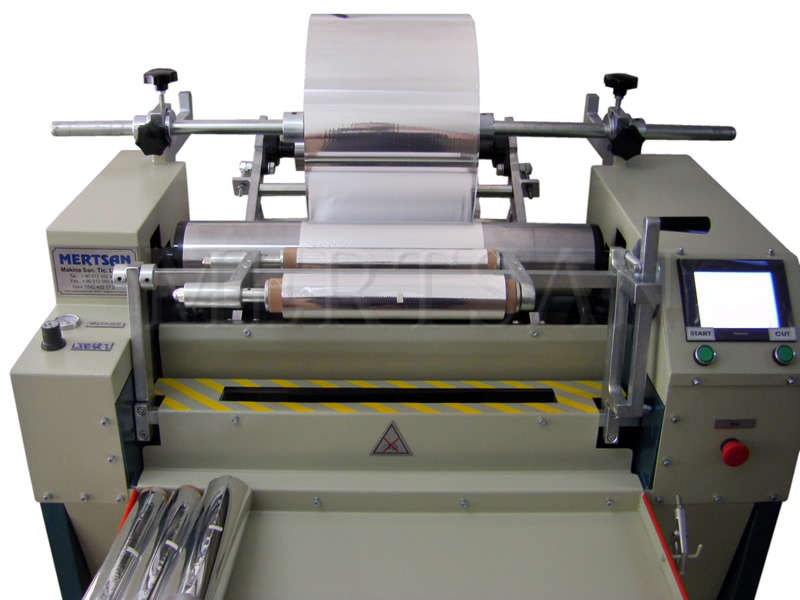

MSN 70 Stretch Film and Aluminum Foil Rewinding Machine;
The MSN 70 is a semi-automatic rewinding machine developed for rewinding food-grade stretch film, industrial stretch film, and aluminum foil. Its adaptable structure for different product sizes helps to achieve regular, controlled, and precise rewinding processes.
The machine provides precise production at high speeds with a rewinding speed reaching 500 m/min and an encoder-assisted length control system. The PLC-controlled operating system continuously monitors the rewinding value achieved with the set length. Rewinding speed, product length, and production quantity can be easily managed via the touch control panel.
With automatic and manual cutting options, the MSN 70 flexibly responds to different production needs. Pneumatic pressure adjustment, an electronic voltage protection system, and a user-friendly control structure allow the operator to manage the production process safely and easily.
The MSN 70 is a suitable basic model for small and medium-sized production facilities seeking a semi-automatic, high-speed solution that can work with different rewinding materials.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 40 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 mm |
Rewinder Unit Specifications :
| Maximum bobbin width : | 55 cm |
| Minimum bobbin diameter : | 30 mm |
| Maximum bobbin diameter. : | 52 mm |
| Maximum roll diameter : | 20 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 140 cm |
| Operating voltage : | 220 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 6 bar |
| Rewind Speed : | 500 m/min |
- Food-grade stretch film, industrial stretch film, and aluminum foil can be rewound.
- Electrostatic paint and galvanized metal parts compliant with hygiene requirements.
- High rewinding speed (500 m/min).
- High meterage accuracy thanks to the encoder system.
- Automatic and manual cutting options at the end of the rewinding process.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic pressure adjustment (pressure adjustment of the rewound core and the opening tape).
Intelligent operating system with PLC control. - Touchscreen LCD control panel (7-stage speed control, highly precise meterage control, total meterage control, and quantity control).
- Electronic Regulator System (Protection system for low and high voltages, max. 270V – min. 180V).
- Operates with low voltage for electrical safety reasons (24V DC).
- Easy and user-friendly design.
- Thanks to the PLC control system, it continuously monitors the difference between the set meterage and the rewound meterage. If required, it can intervene and automatically perform the calibration adjustment itself.
