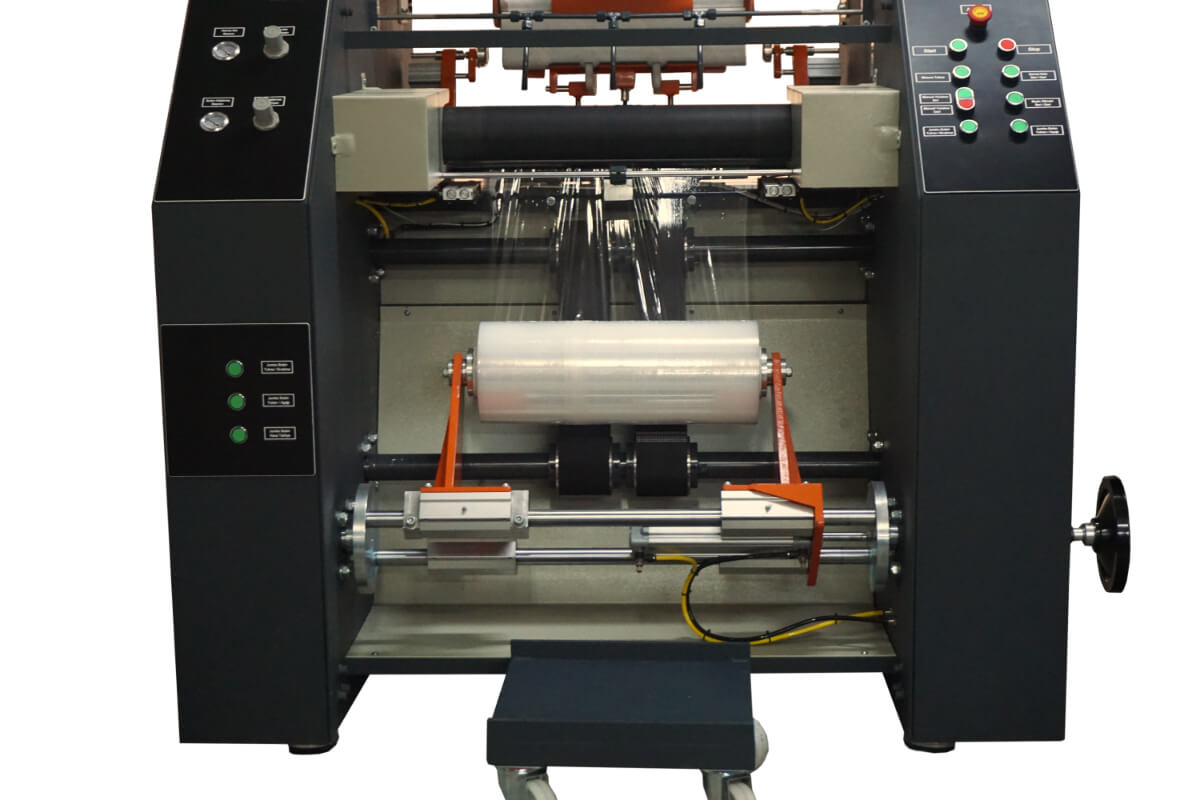

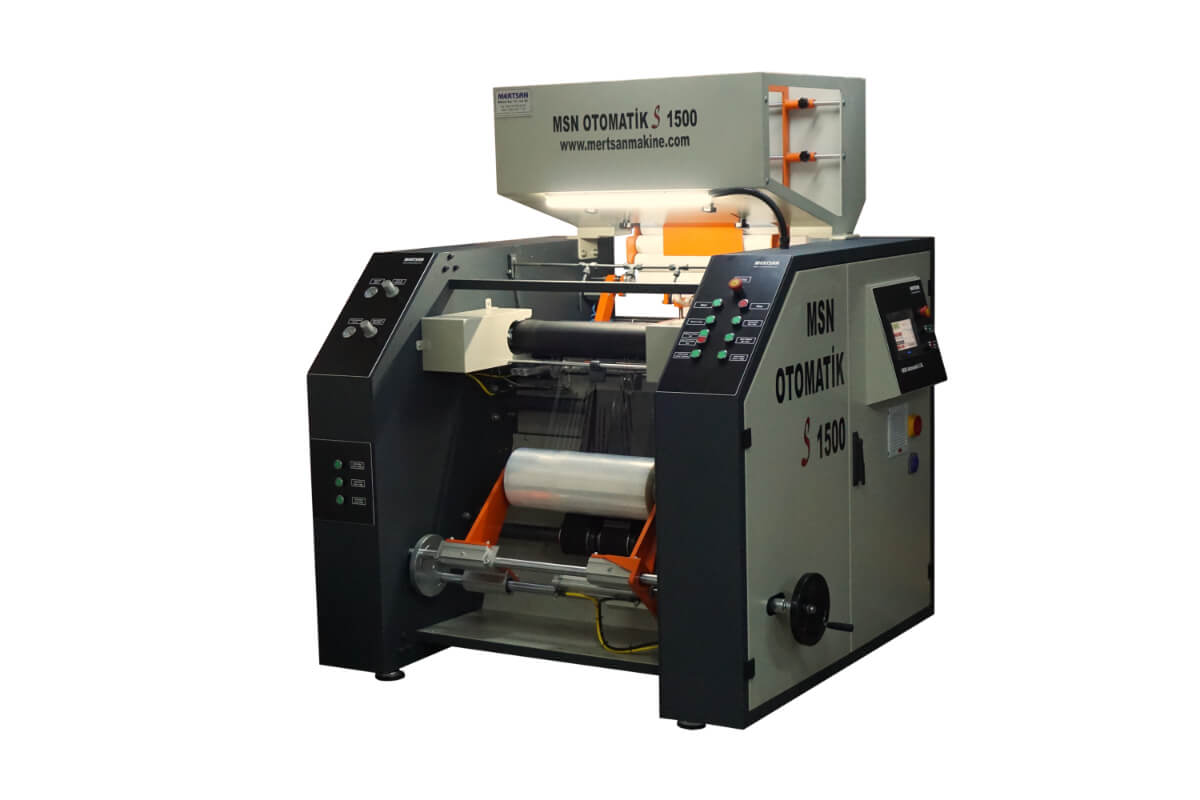

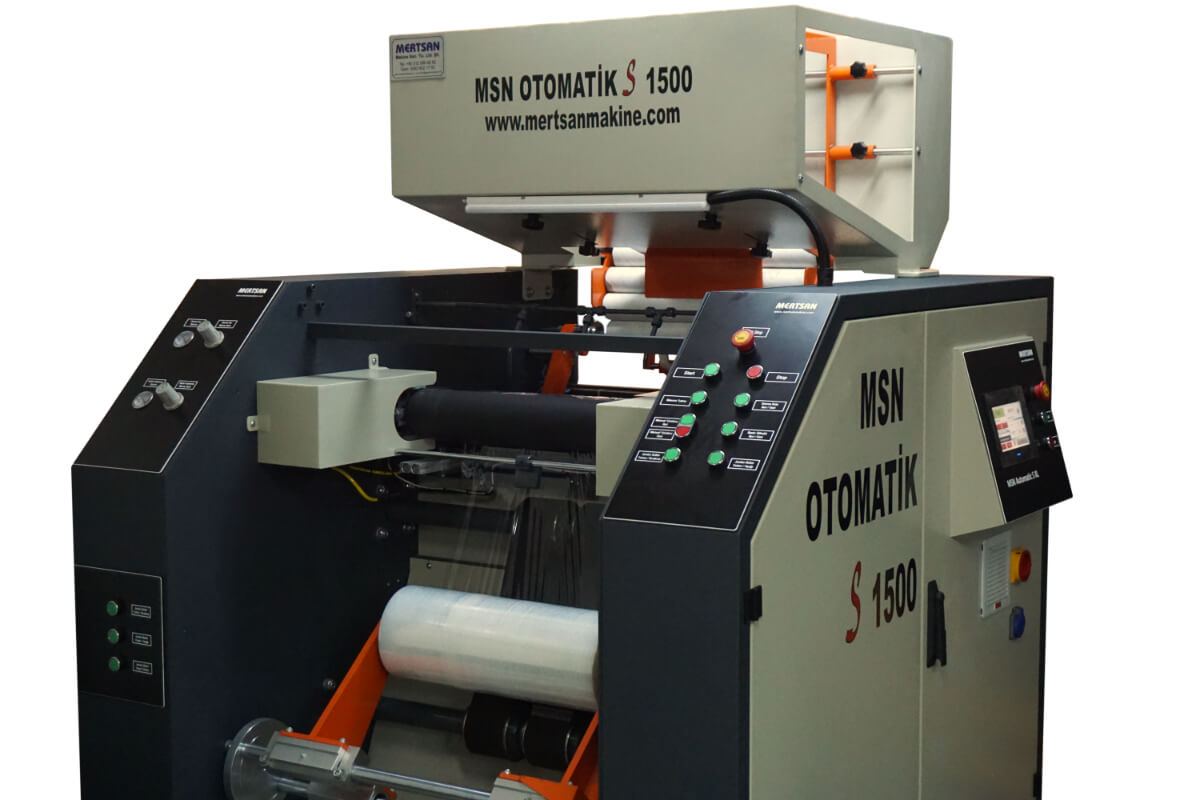

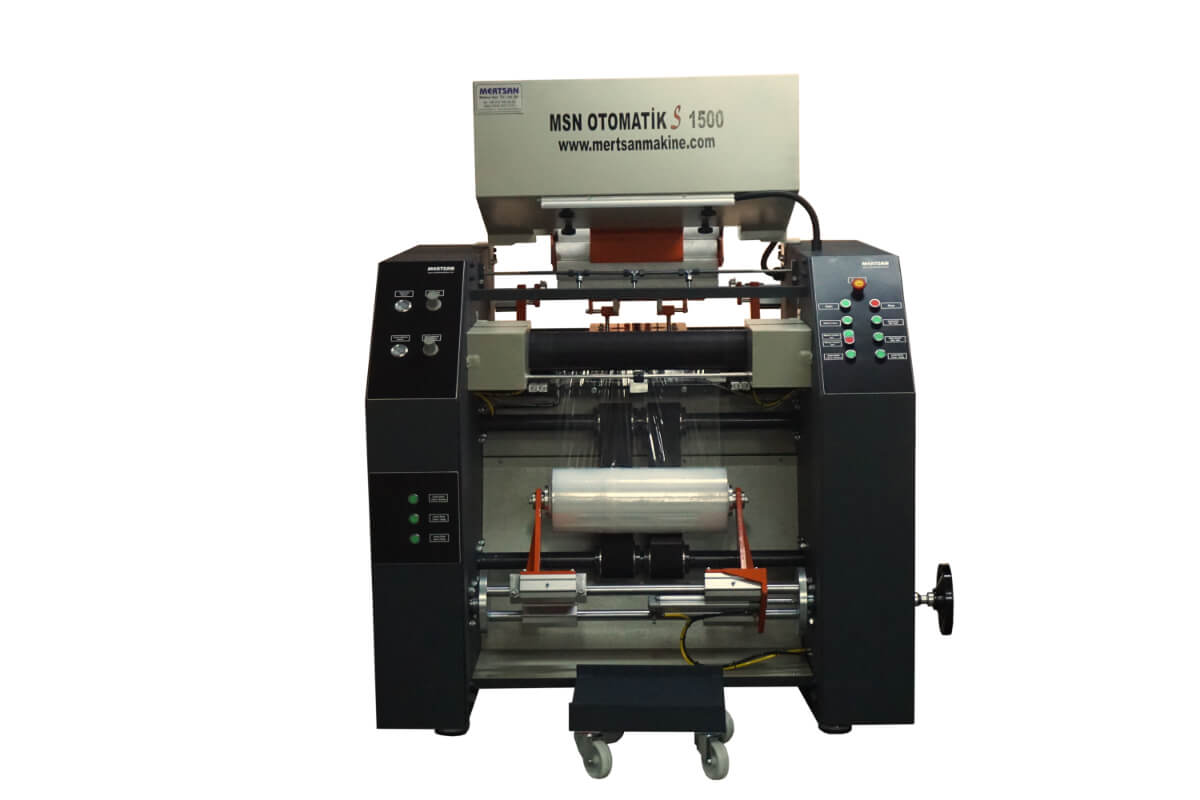

MSN Automatic S XL Jumbo Stretch Rewinding Machine; This is a fully automated solution developed for producing industrial and food-grade stretch film rolls from large jumbo coils. Its large coil capacity and high rewinding speed increase efficiency in high-volume production lines. The automatic core feeding system, precise tension control, and sensor-assisted safety structure support uninterrupted operation. PLC control and a color touchscreen panel provide ease of use, while the robust mechanical design offers smooth rewinding quality at high speeds, low labor requirements, and stable production.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 60 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 28 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 25 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 185 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 10 bar |
| Rewind Speed : | 1100 m/min |
- Fully Automatic Stretch Film Rewinding Machine
- Suitable for rewinding food-grade stretch film and industrial stretch film.
- Specially designed wide rewinding range (min. 10 mt – max. 1500 mt)
- Thanks to special sensors, it stops working and warns the user in case the stretch film runs out, breaks, or tears.
- Automatic product weighing and automatic calibration system. (Optional)
- High rewinding speed (1100 m/min)
- Automatic bobbin feeding system.
- Bobbin control sensors.
- Motorized stretch film edge alignment system
- Adjustable bobbin hopper and bobbin channel for different bobbin sizes.
- Electrostatic painted and galvanized coated metal parts.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic system supported operation.
- Pneumatic pressure adjustment. (pressure adjustment of the rewound bobbin and unwinding unit)
- User-friendly design thanks to PLC control. Color touchscreen LCD control panel.
- Electronic regulation system. (max. 270V min. 180V)
- Low voltage control system for safety reasons. (24V DC)
- Intelligent calibration system thanks to PLC control software.
