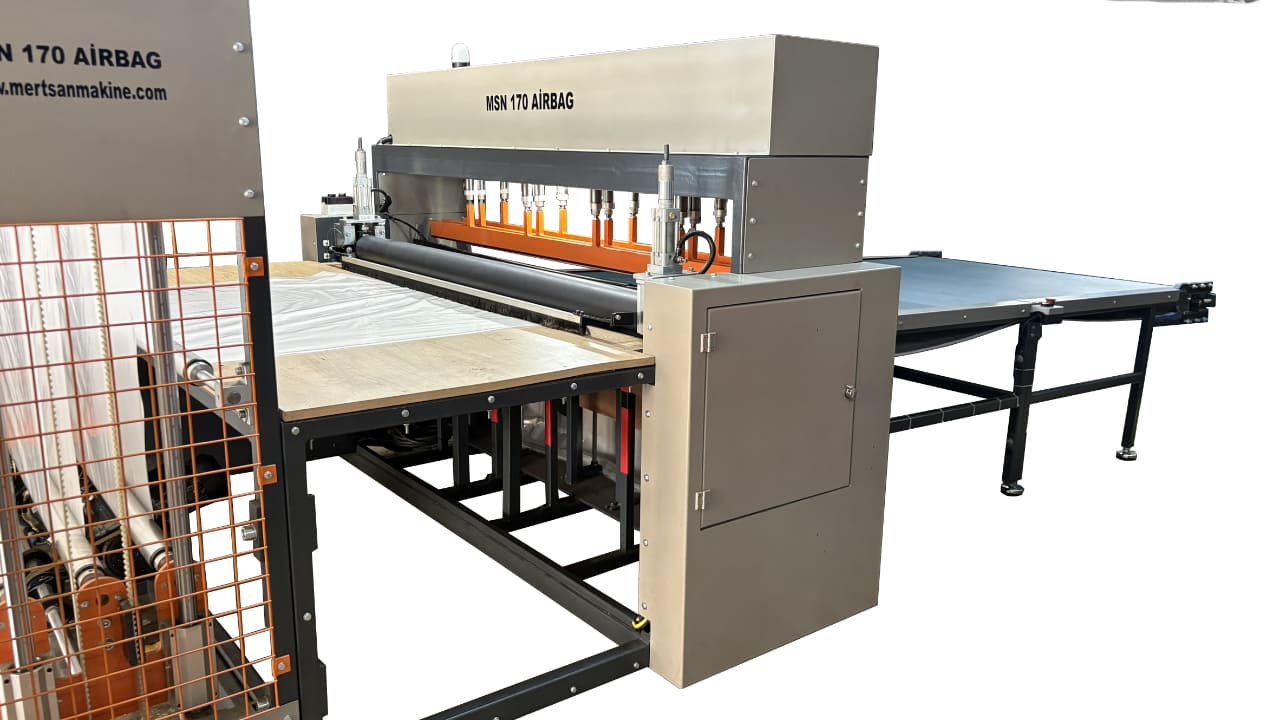

Container airbag sizing and sealing machine. This machine was developed to accelerate and standardize the production processes of airbags used for load securing. It enables the cold-cutting of the plastic bag used inside the airbag to the desired dimensions and the secure sealing of the open ends using a hot-sealing system. It also allows for the precise cutting of the outer protective sack to the specified dimensions. Thanks to its PLC and touchscreen control, the size, quantity, cutting, and sealing parameters can be easily adjusted. The precise temperature control system maintains a constant sealing temperature, ensuring strong, leak-proof, and high-quality seals.

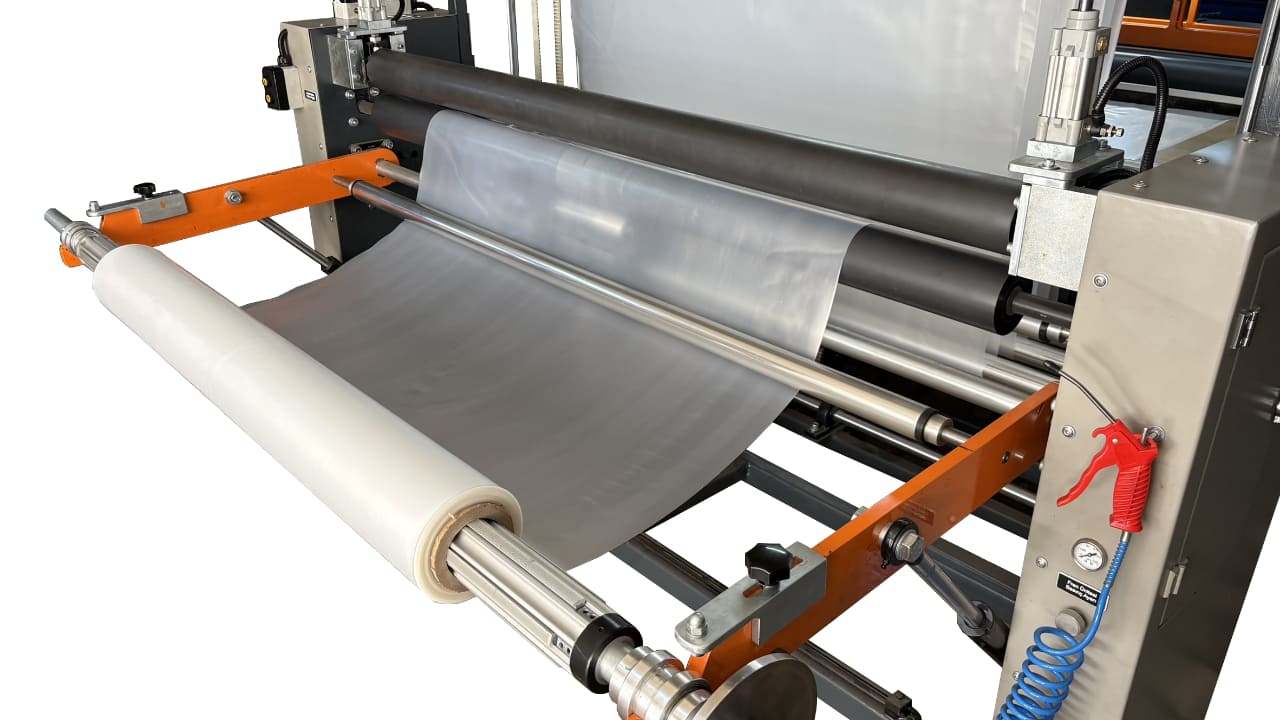

Opening Unit Specifications:
| Maximum roll width : | 150 cm |
| Maximum roll diameter : | 120 cm |
| Maximum roll weight : | 5000 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Sizing Unit Specifications :
| Maximum product width : | 150 cm |
| Maximum product length : | 400 cm |
| Maximum resistance temperature. : | 300 C |
Technical Details :
| Physical dimensions : | 500 x 220 x 160 cm |
| Operating voltage : | 380 V, 3P 50/60 Hz (+/- 10%) |
| Total engine power : | 5,2 kW 3P AC / Servo Motor |
| Pneumatic Air Pressure : | 6 Atm |
| Average Operating Speed : | 12 pieces/min |
| Resistance Power : | 2 kw |
- Cold cutting system for jute sacks, bags, etc.
- Hot sealing system for bags, etc.
- Pneumatic shaftless cylinder flying shear system
- Industrial easily replaceable blade system
- Servo motor opening system for high speed and accuracy
- Tension control and tension unit
- Hydraulic coil lifting system
- Adjustable pneumatic pressure system
- Intelligent control system with PLC controller

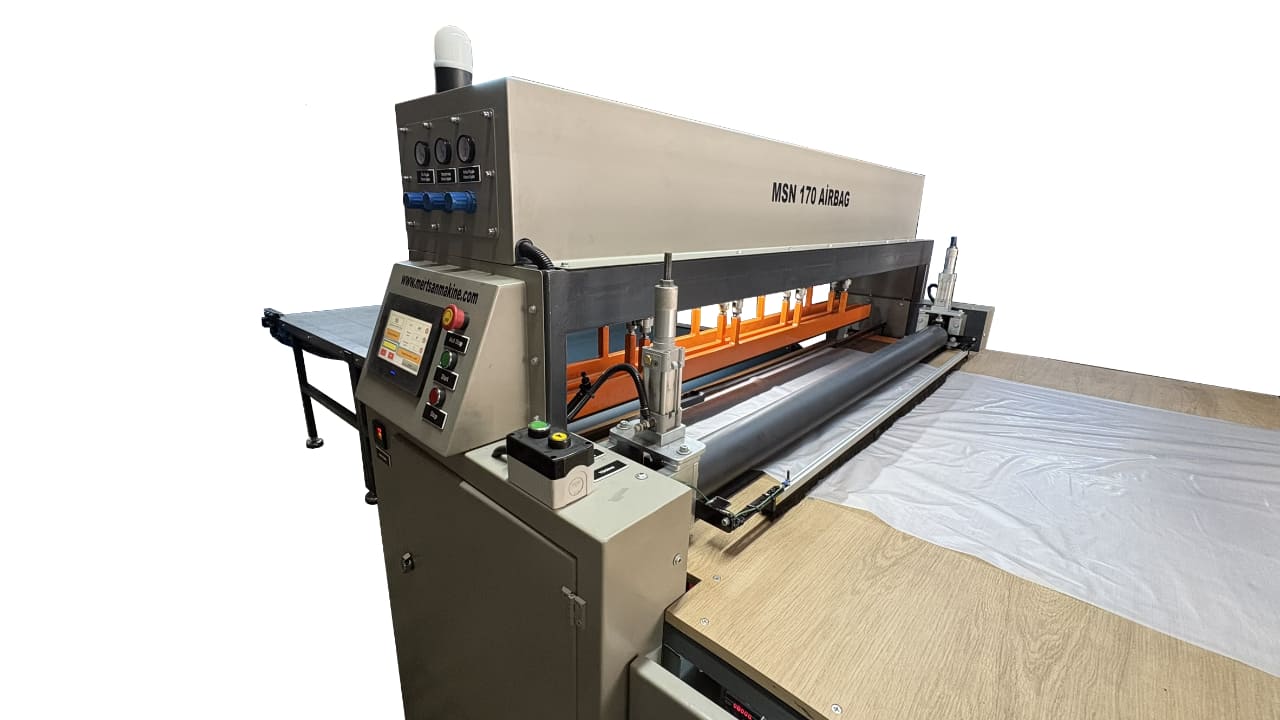

- Touch LCD control panel
- Electronic regulator system
- Easy and comfortable user-friendly design
- Adjustable quantity control system.
- Stacking conveyor system with automatic adjustment or continuous operation modes.
- Static electricity discharge (ESD) system with anti-static bar.
