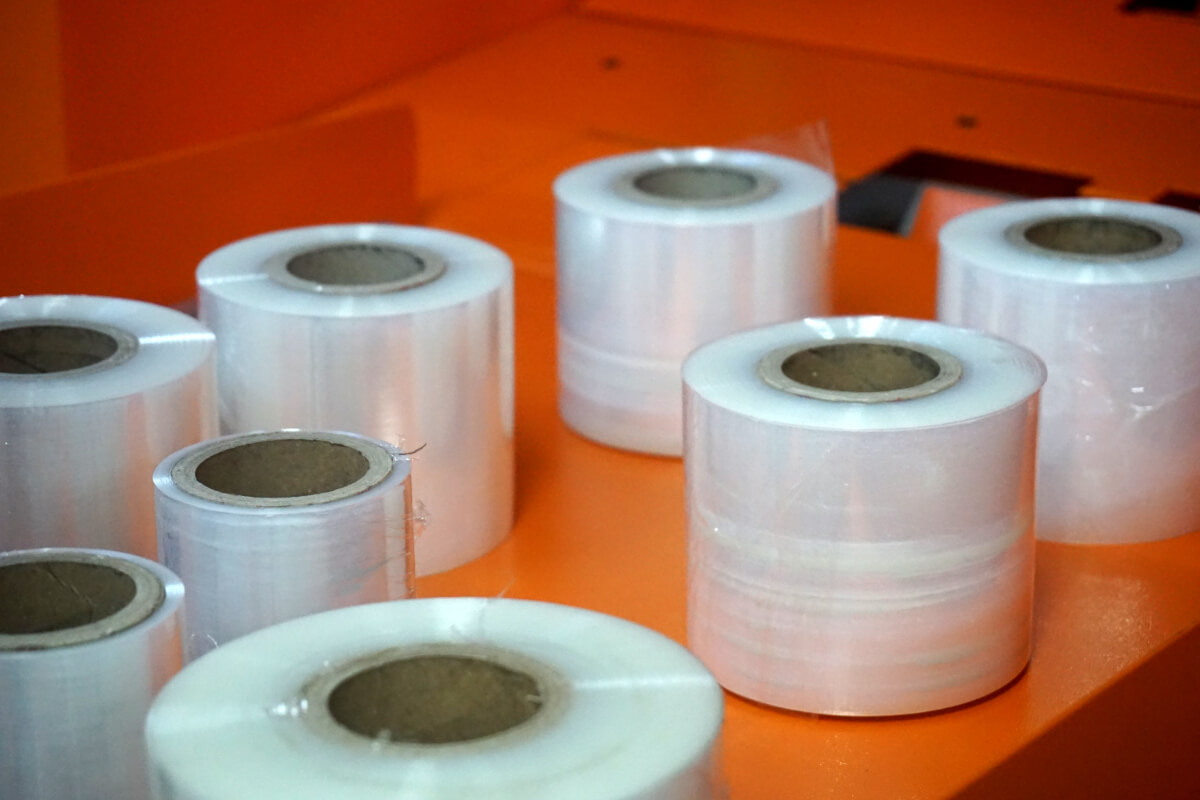

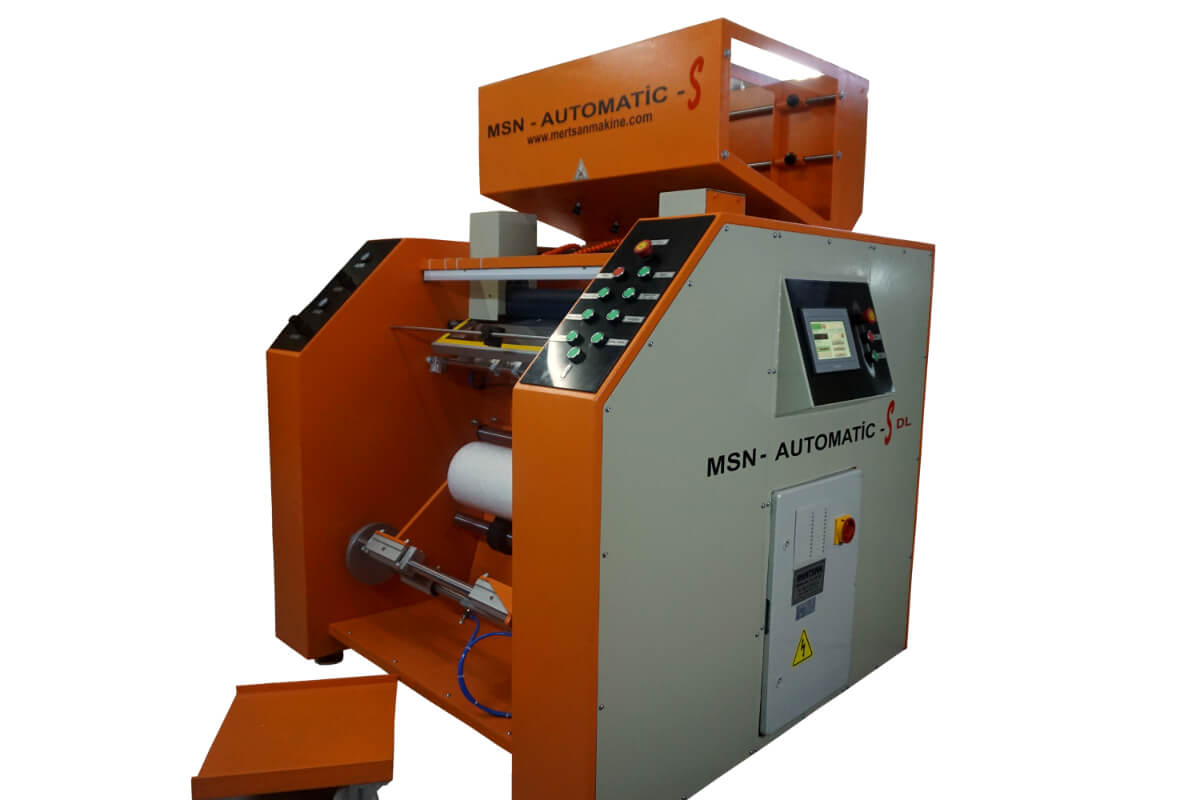

MSN Automatic S XL DL Slicing Stretch Film Rewinding Machine; This is a fully automated production solution developed for high-speed rewinding and slicing of large jumbo rolls of stretch film to desired sizes. The integrated slicing system enables the preparation of stretch film rolls of different widths on a single line. Automatic core feeding, precise tension control, and sensor-assisted operation increase production continuity. Offering ease of use thanks to its PLC control and color touchscreen panel, the machine provides high efficiency, uniform winding quality, and low labor requirements in industrial, jumbo, and food-grade stretch film production.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 60 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 28 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 25 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 185 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 10 bar |
| Rewind Speed : | 1100 m/dk |
- Fully Automatic Stretch Film Rewinding Machine
- Suitable for rewinding food-grade stretch film and industrial stretch film.
- Specially designed blade and cylinder system for stretch film slitting.
- Five adjustable slitting blades.
- Specially designed wide rewinding range (min. 10 mt – max. 1500 mt)
- Thanks to special sensors, it stops working and warns the user in case the stretch film runs out, breaks, or tears.
- Automatic product weighing and automatic calibration system. (Optional)
- High rewinding speed (1100 m/min)
- Automatic bobbin feeding system.
- Bobbin control sensors.
- Motorized stretch film edge alignment system.
- Adjustable bobbin hopper and bobbin channel for different bobbin sizes.
- Electrostatic painted and galvanized coated metal parts.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic system supported operation.
- Pneumatic pressure adjustment. (Rewinding bobbin and unwinding unit pressure adjustment)
- User-friendly design thanks to PLC control.
- Color touchscreen LCD control panel.
- Electronic regulation system. (max. 270V min. 180V)
- Low voltage control system for safety reasons. (24V DC)
- Intelligent calibration system thanks to PLC control software.
