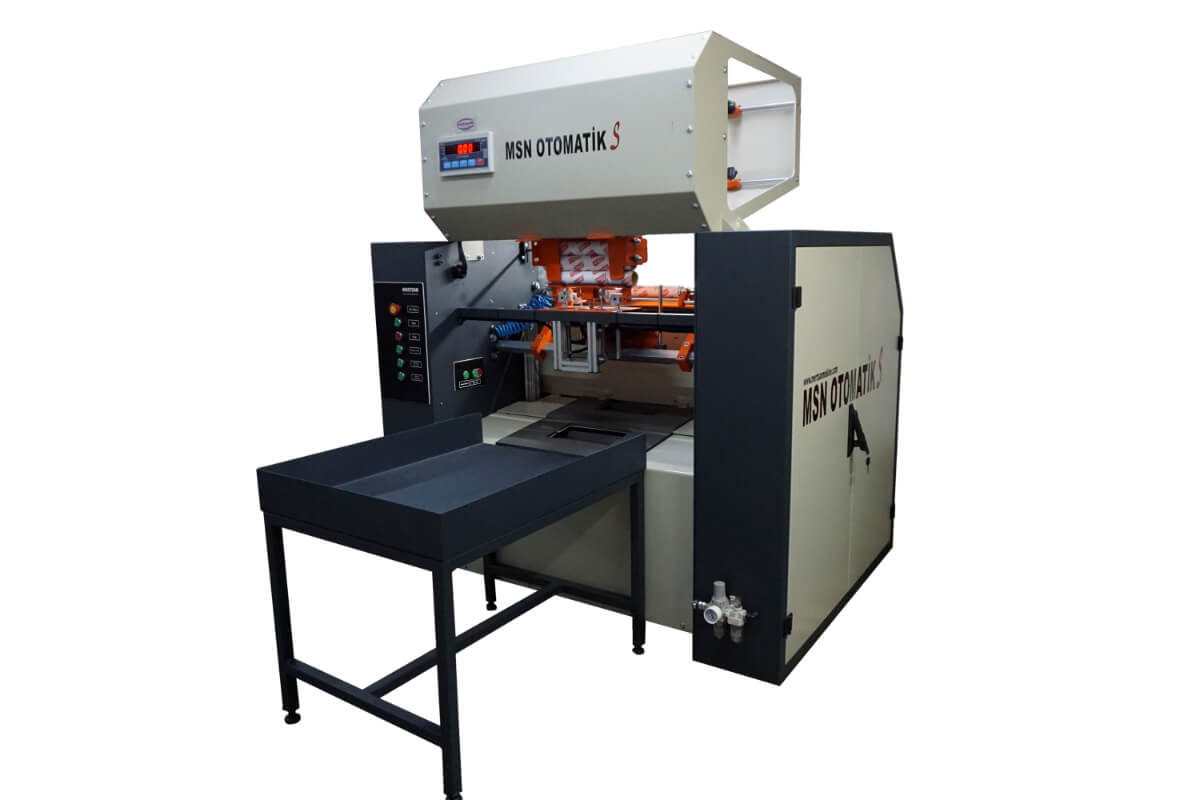

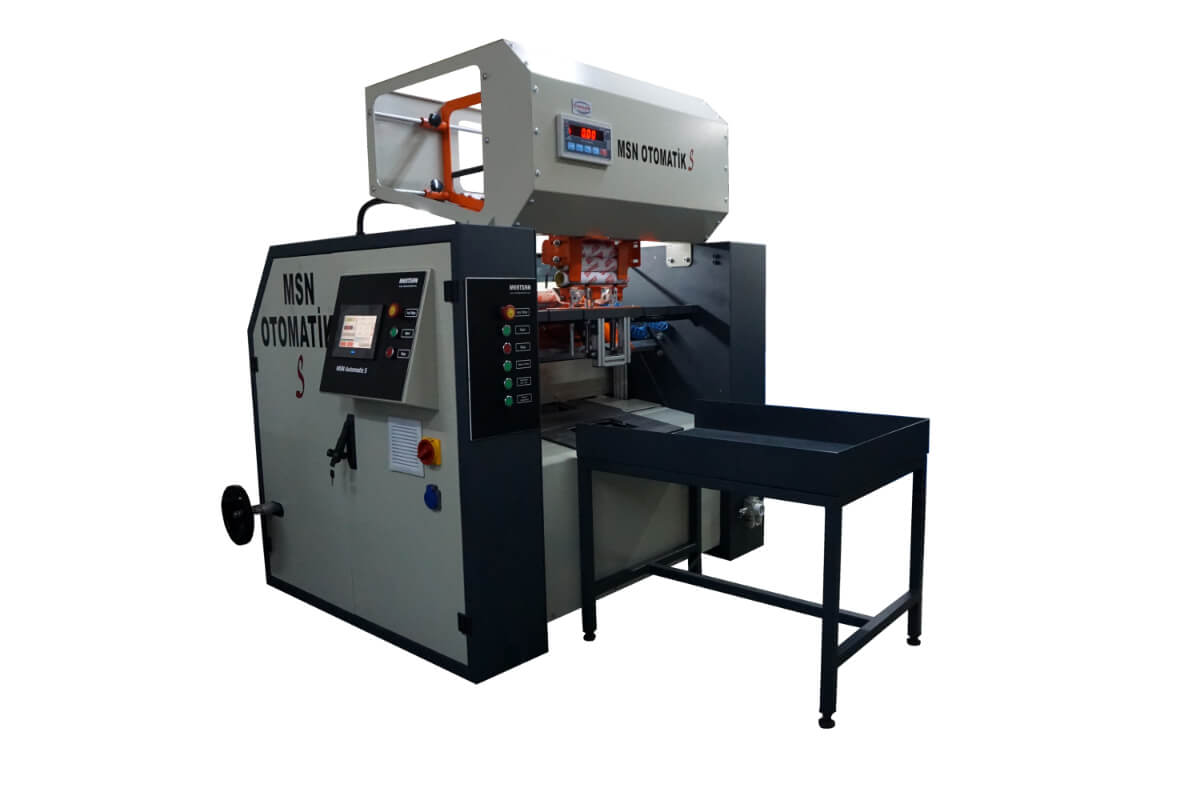

MSN Automatic S Stretch Rewinding Machine;Developed for high-speed, fully automatic rewinding of food-grade and industrial stretch films. Rewinding speeds reaching 1100 meters per minute ensure high production capacity, while the automatic core feeding system supports uninterrupted operation. Sensors stop the machine and alert the user in case of stretch film breakage, tearing, or depletion. PLC control, a color touchscreen, pneumatic pressure adjustment, and an intelligent calibration system offer ease of use, safe operation, and consistent rewinding quality at high speeds.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 60 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 28 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 20 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 170 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 10 bar |
| Rewind Speed : | 1100 m/min |
- Fully Automatic Stretch Film Rewinding Machine
- Suitable for rewinding food-grade stretch film and industrial stretch film.
- Special sensors stop operation and alert the user if the stretch film runs out, breaks, or tears.
- Automatic product weighing and calibration system. (Optional)
- High winding speed (1100 m/min)
- Automatic bobbin feeding system.
- Bobbin control sensors.
- Motorized stretch edge alignment system.
- Adjustable bobbin hopper and bobbin channel for different bobbin sizes.
- Electrostatic painted and galvanized coated metal parts.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic system supported operation.
- Pneumatic pressure adjustment. (pressure adjustment of the rewound bobbin and unwinding unit)
- User-friendly design thanks to PLC control.
Color Touch LCD control panel. - Electronic regulation system. (max. 270V min. 180V)
- Low voltage control system for safety reasons. (24V DC)
- Intelligent calibration system thanks to PLC control software.
