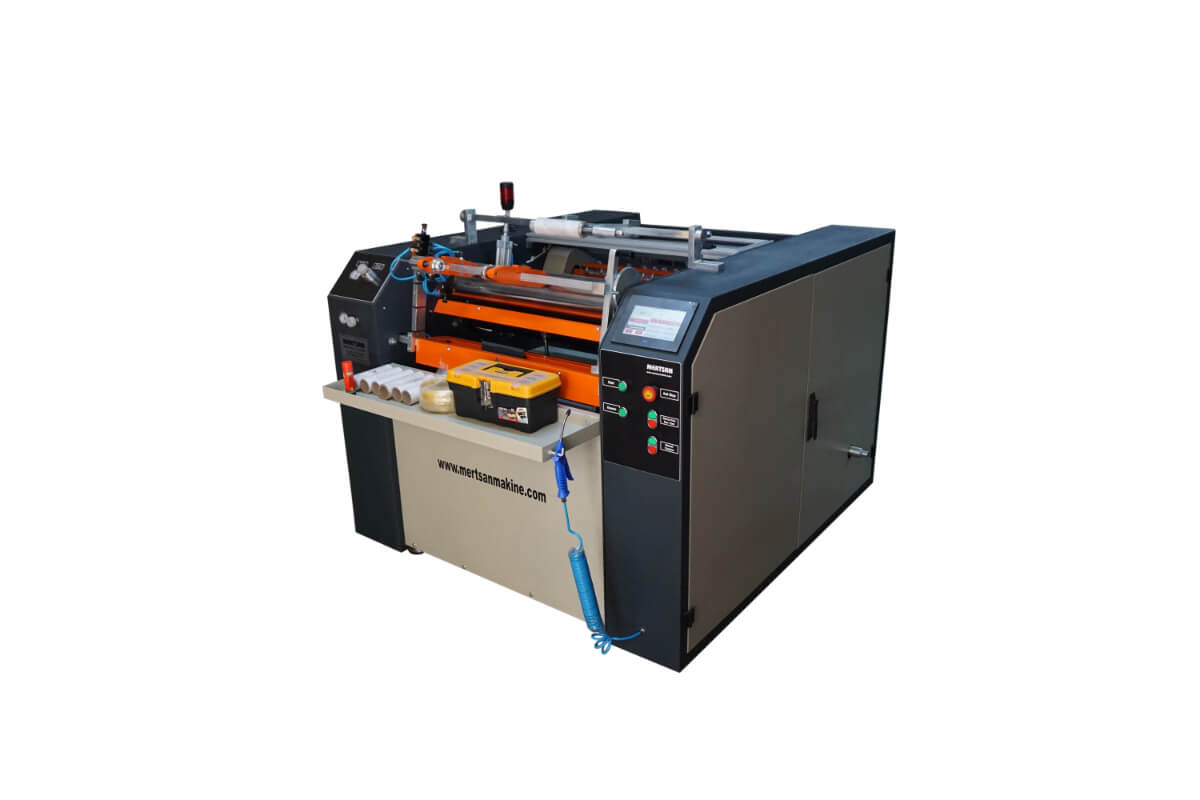

MSN 70 S EM Embossed Aluminum Foil Rewinding Machine; This is a semi-automatic machine developed for rewinding aluminum foil and applying pattern printing to its surface. The S series features a pneumatic floor-loading system, high rewinding speed, and user-friendly control structure. A key feature of the machine is its ability to produce consistent and aesthetically pleasing patterns on the foil during the rewinding process. Thanks to precise meterage control and consistent rewinding quality, the MSN 70 S EM offers an efficient, reliable, and functional solution for businesses producing patterned aluminum foil.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 60 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 28 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 20 cm |
Technical Details :
| Physical dimensions : | 140 x 170 x 140 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 6 bar |
| Rewind Speed : | 650 m/min |
- Food grade stretch film, industrial stretch film and aluminum foil rewinding.

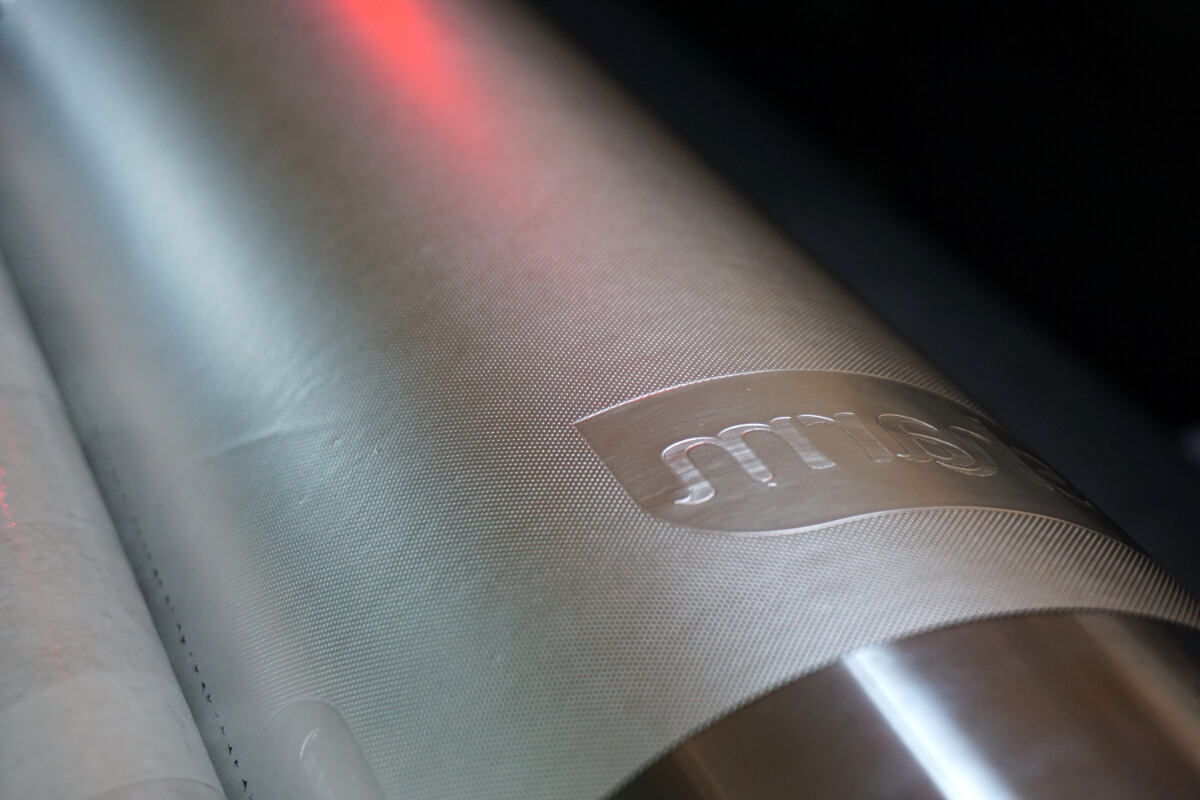

- Aluminum foil printing system.

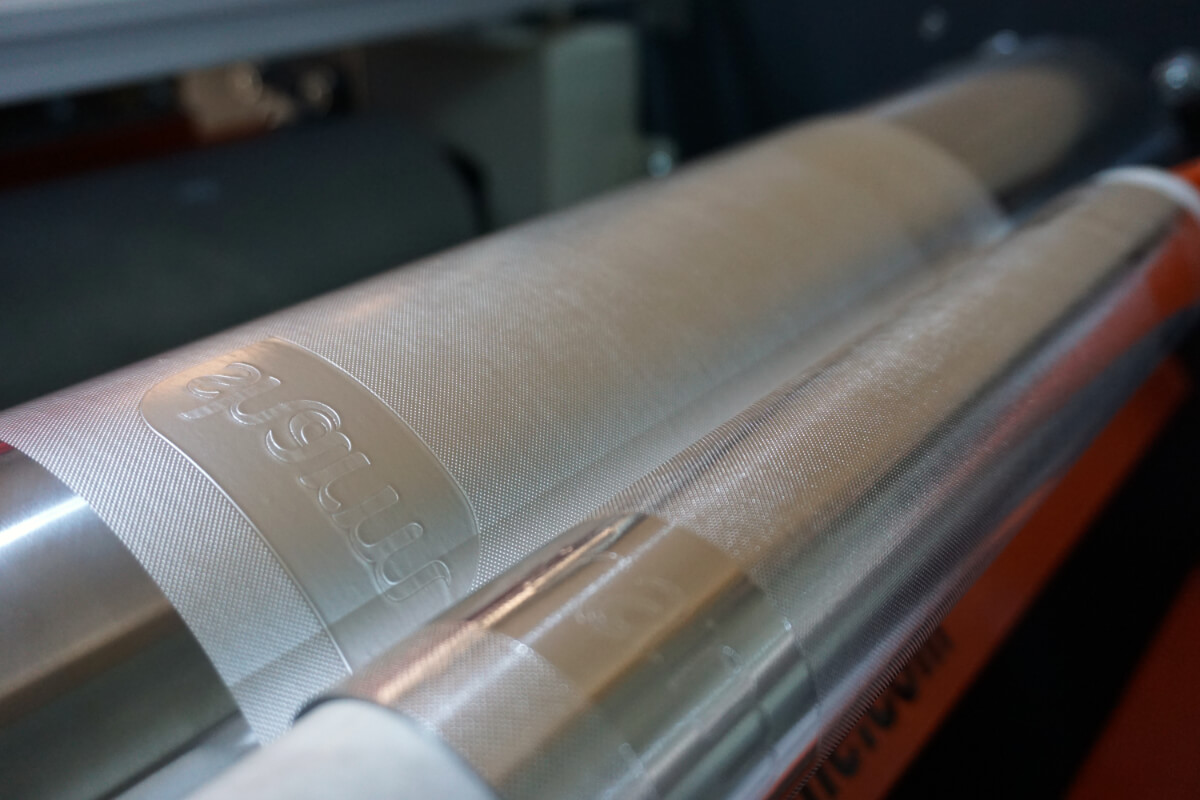

- Two printing cylinder options for different patterns.
- Double rewinding head facilitates bobbin change.
- Floor loading system for large bobbins.
- Automatic tape feeding system (Optional)
- Electrostatic paint and galvanized metal parts compliant with hygiene requirements.
- High rewinding speed (650 m/min).
- High meterage accuracy thanks to encoder system.
- Automatic and manual cutting options at the end of the rewinding process.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic pressure adjustment (Pneumatic adjustment of the tape pressure that performs the rewinding and unwinding of the bobbin).
- Intelligent control system with PLC control.
- Touchscreen LCD control panel. (7-stage speed control, very precise meterage and quantity control)
- Electronic Regulator System. (Protection system for low and high voltages. max. 270V – min 180V)
- Operates with low voltage for electrical safety reasons. (24V DC)
- Easy and comfortable user-friendly design.
- Thanks to the PLC control system, it constantly monitors the difference between the set meter and the rewound meter. If desired, it can intervene and automatically perform the calibration adjustment.
