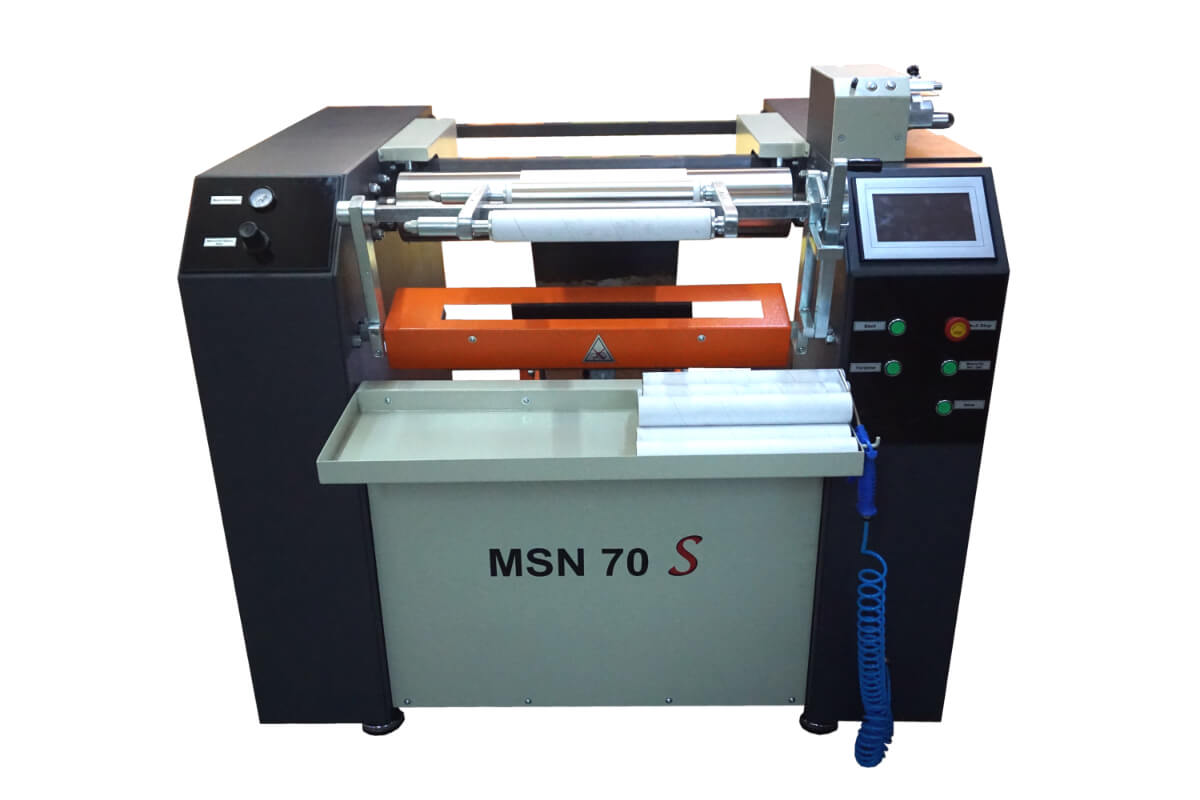

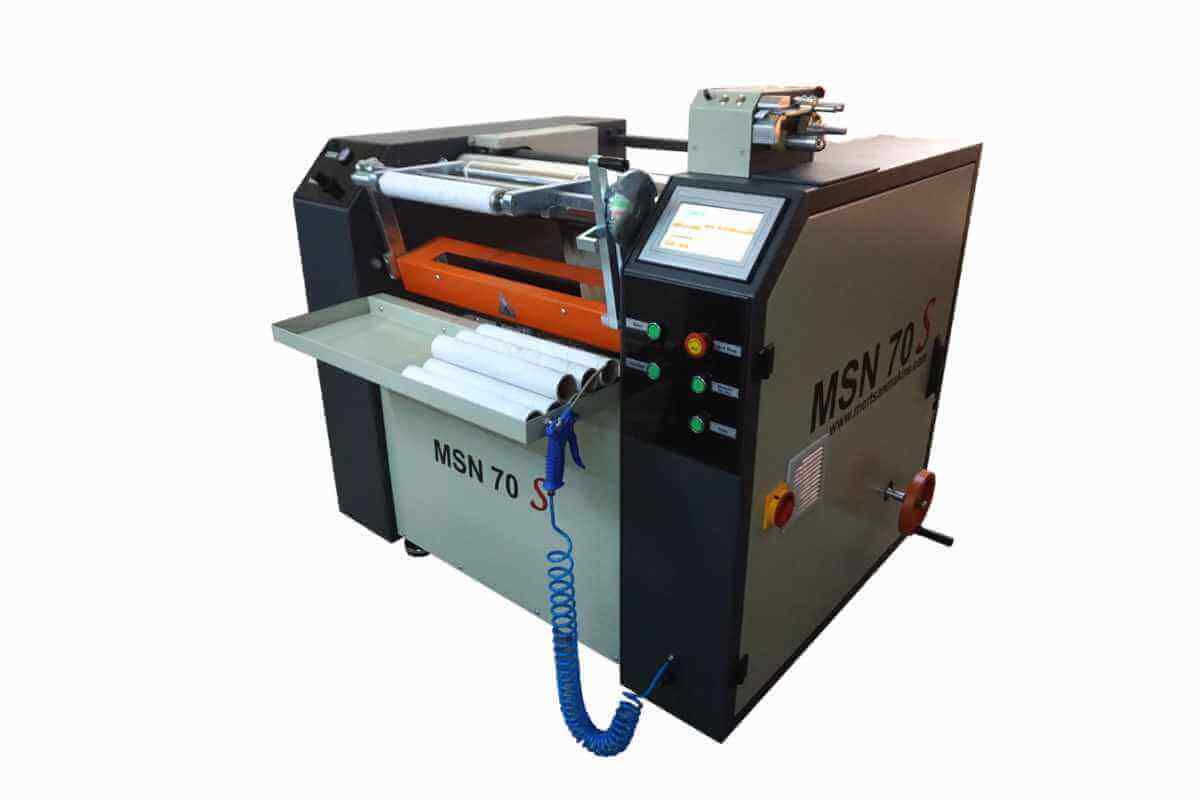

MSN 70 S Stretch Film and Aluminum Foil Rewinding Machine; This is a semi-automatic rewinding machine developed for rewinding stretch film and aluminum foil. The most important feature that distinguishes the S series from other models is the pneumatic floor-loading system, which allows for easier and safer loading of jumbo rolls into the machine. This design simplifies the roll changing process for the operator while also contributing to workplace safety. Thanks to higher rewinding speeds, precise length control, and a user-friendly control system, the MSN 70 S offers a powerful and practical solution for businesses that want to achieve fast, consistent, and efficient production.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 40 cm |
| Maximum roll weight : | 150 kg |
| Standard roll inner diameter : | 76 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 28 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 20 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 140 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 6 bar |
| Rewind Speed : | 650 m/min |
- Food grade stretch film, industrial stretch film and aluminum foil rewinding.
- Double rewinding head facilitates bobbin change.
- Floor loading system for large bobbins.
- Automatic tape feeding system (Optional)
- Electrostatic paint and galvanized metal parts compliant with hygiene requirements.
- High rewinding speed (650 m/min).
- High meterage accuracy thanks to encoder system.
- Automatic and manual cutting options at the end of the rewinding process.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic pressure adjustment. (Pneumatic adjustment of the tape pressure that performs the rewinding and unwinding of the bobbin.)
- Intelligent control system with PLC control.

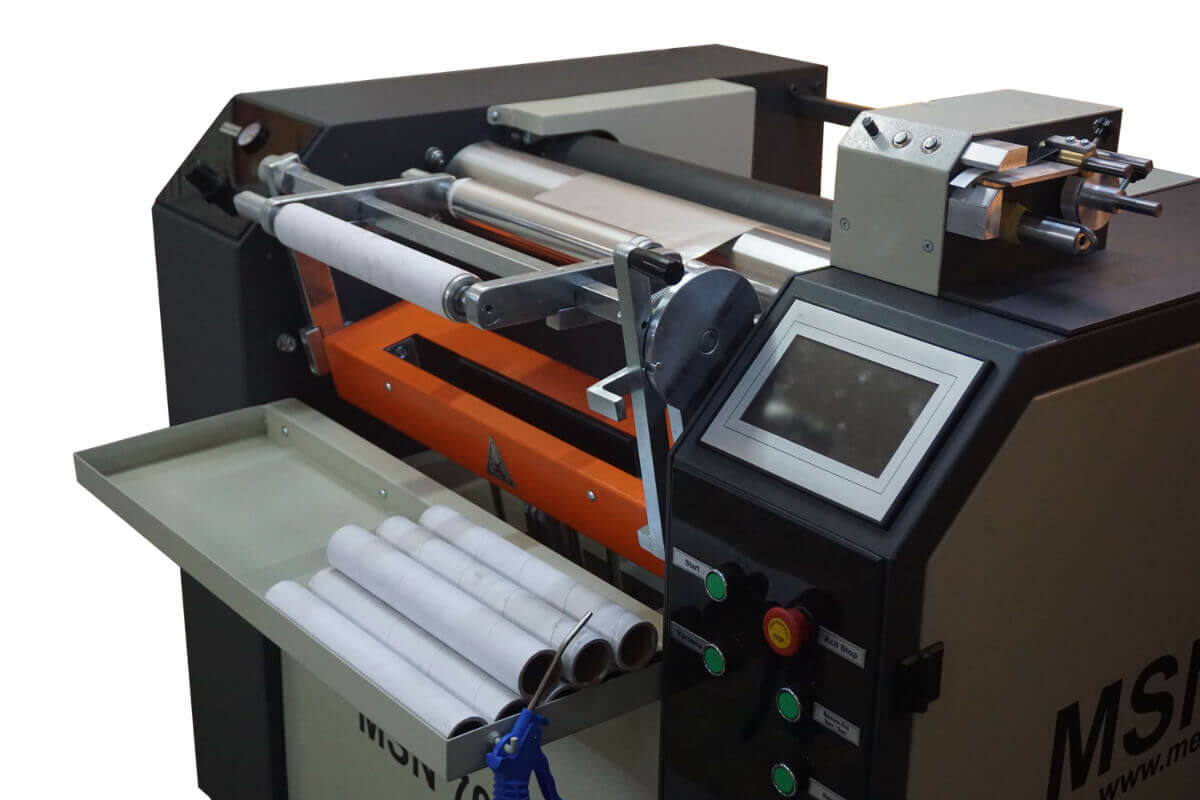

- Touchscreen LCD control panel. (7-stage speed control, very precise meterage and quantity control)
- Electronic Regulator System. (Protection system for low and high voltages. max. 270V – min 180V
- Operates with low voltage for electrical safety reasons. (24V DC)
- Easy and comfortable user-friendly design.
- Thanks to the PLC control system, it constantly monitors the difference between the set meter and the rewound meter. If desired, it intervenes and automatically performs the calibration adjustment.
