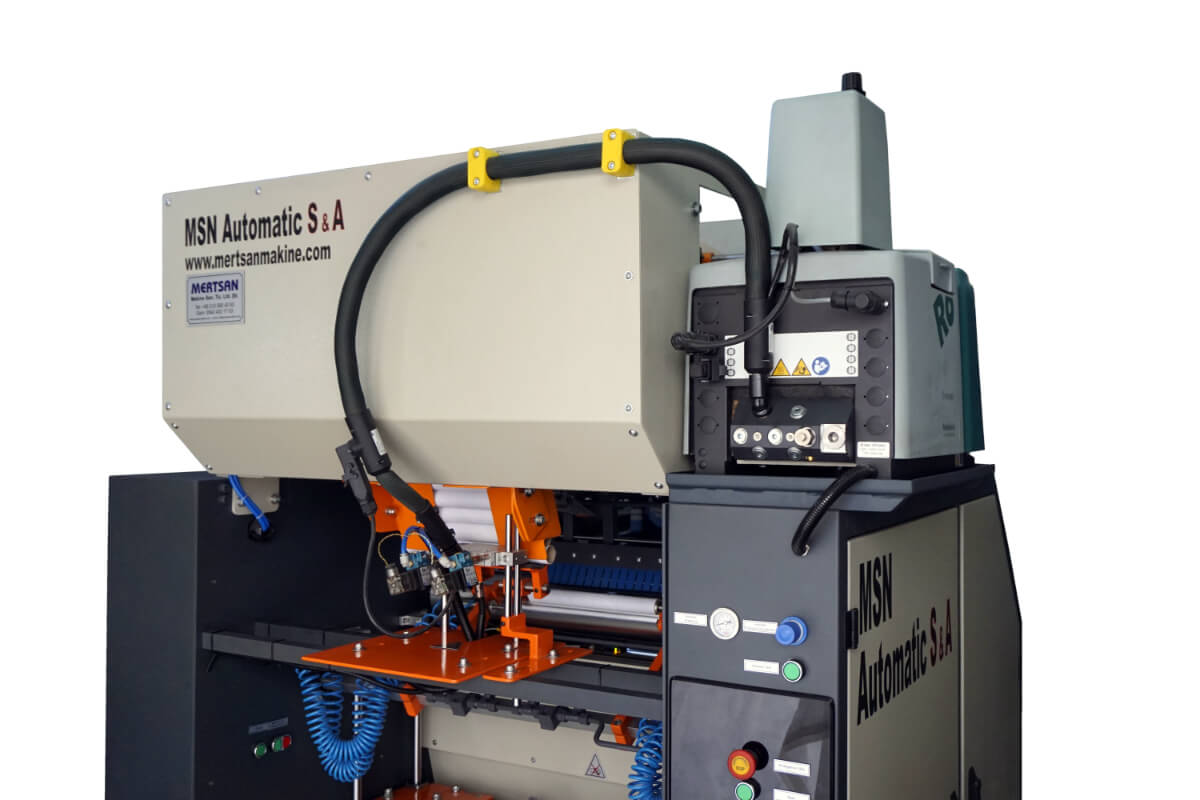

MSN Automatic SA Aluminum Foil and Stretch Film Rewinding Machine; Developed for fully automatic rewinding of aluminum foil and food-grade stretch film. At the start of rewinding, the hotmelt unit securely fastens the foil to the core. Once rewinding is complete, the automatic labeling system prevents unraveling, ensuring neat and ready-to-use rolls. Hot and cold cutting systems are available for both products, adapting to different production needs. With high efficiency, precise rewinding quality, and the advantage of automated operation, it offers a reliable solution for mass production lines.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 60 cm |
| Maximum roll weight : | 300 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 30 mm |
| Maximum bobbin diameter : | 52 mm |
| Maximum roll diameter : | 10 cm |
Technical Details :
| Physical dimensions : | 170 x 140 x 195 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 10 bar |
| Rewind Speed : | 1100 m/min |
- Fully Automatic Aluminum Foil and Food Stretch Wrap Rewinding Machine
- Specially designed wide rewinding range (min. 5 mt – max. 300 mt)
- Thanks to special sensors, it stops working and warns the user in case the stretch wrap runs out, breaks, or tears.
- Automatic product weighing and automatic calibration system. (Optional)
- High rewinding speed (1100 m/min)
- Automatic bobbin feeding system.
- Bobbin control sensors.
- Motorized stretch wrap edge alignment system
- Adjustable bobbin hopper and bobbin channel for different bobbin sizes.
- Electrostatic painted and galvanized coated metal parts.
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic system supported operation.
- Pneumatic pressure adjustment. (pressure adjustment of the rewound bobbin and unwinding unit)
- User-friendly design thanks to PLC control.
Color Touch LCD control panel. - Electronic regulation system. (max. 270V min. 180V)
- Low voltage control system for safety reasons. (24V DC)
- Intelligent calibration system thanks to PLC control software.
