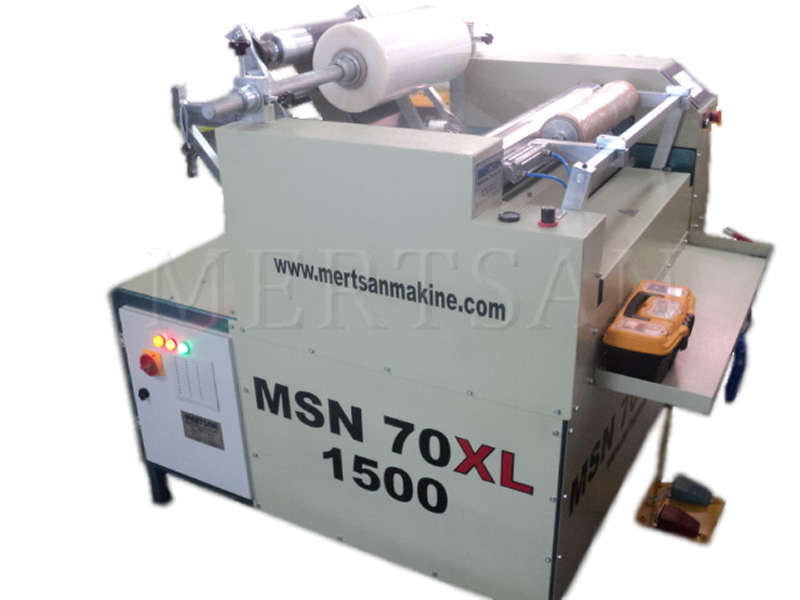

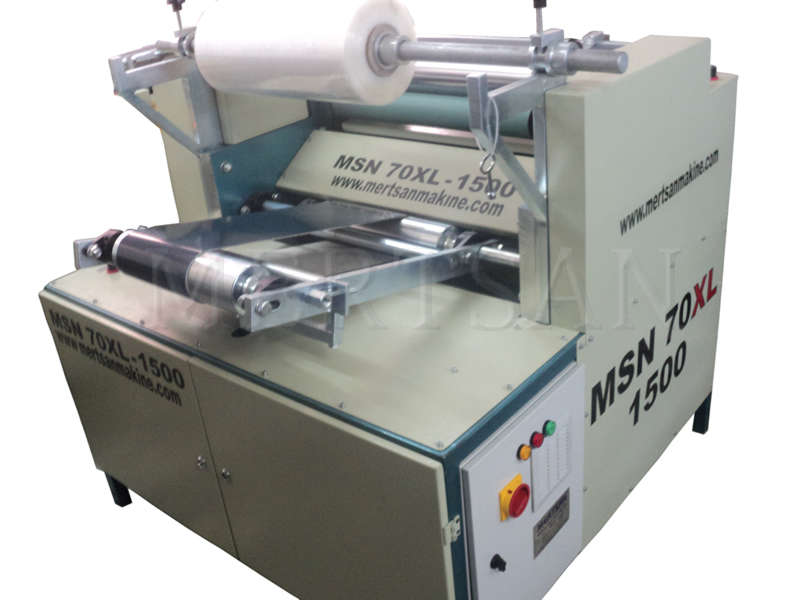

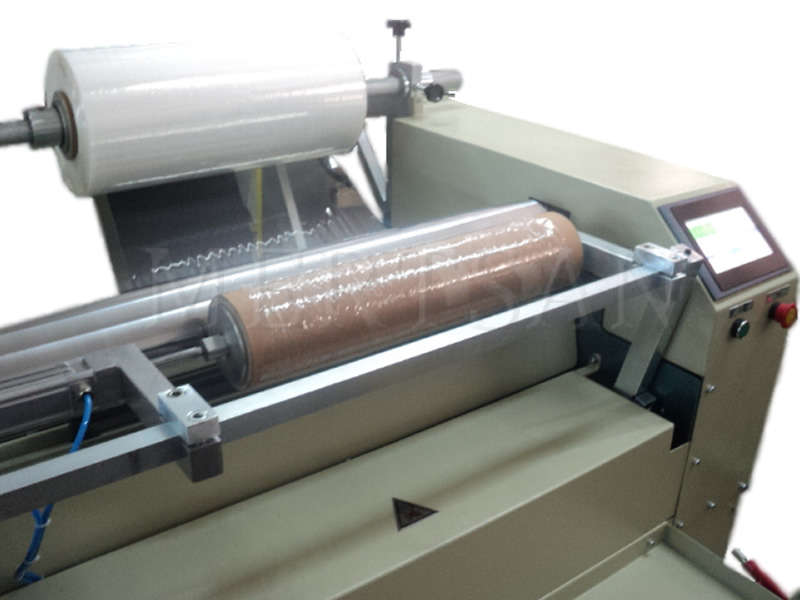

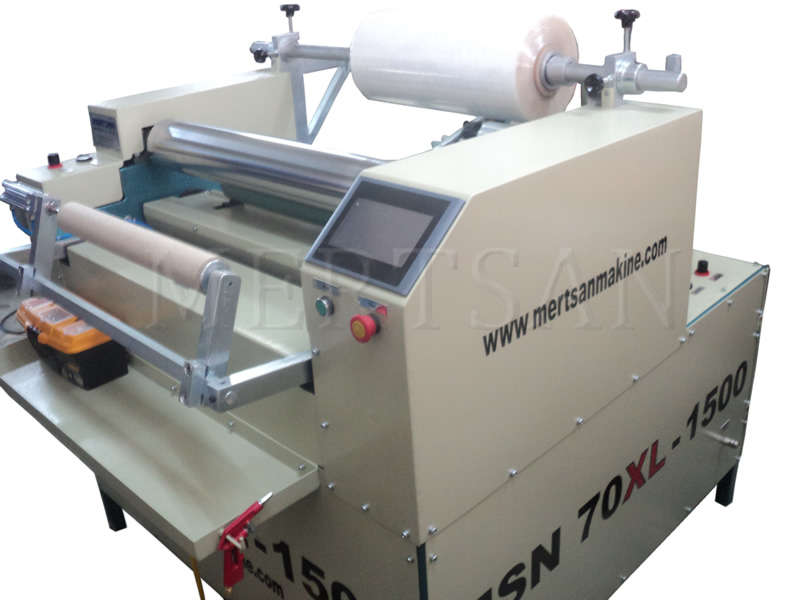

MSN 70 XL 1500 Jumbo Stretch Rewinding Machine: This is a semi-automatic rewinding machine developed to rewind up to 1500 meters of product on a single roll. It features stronger mechanical components and a more durable body structure compared to standard models to safely handle the load of long-length production. Precise length control, consistent rewinding quality, and a user-friendly control system ensure controlled execution of the production process. It offers an efficient, robust, and reliable solution for businesses producing high-volume stretch film.
Opener Unit Specifications :
| Maximum roll width : | 50 cm |
| Maximum roll diameter : | 80 cm |
| Maximum roll weight : | 250 kg |
| Standard roll inner diameter : | 76 – 152 mm |
Rewinder Unit Specifications :
| Maximum bobbin width. : | 55 cm |
| Minimum bobbin diameter : | 30 mm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum roll diameter : | 20 cm |
Technical Details :
| Physical dimensions : | 140 x 140 x 140 cm |
| Operating voltage : | 380 V, 50/60 Hz (+/- 10%) |
| Engine power : | 4 kW 3P AC Motor |
| Pneumatic Air Pressure : | 6 bar |
| Rewind Speed : | 500 m/min |
- Specially designed for loading jumbo bobbins with a diameter of 80 cm.
- Rewinding 1500 meters of food stretch film, industrial stretch film, and aluminum foil.
- Pneumatic printed bobbin rewinding heads.
- Large single rewinding head for 1500 meters of rewinding.
- High rewinding speed (500 m/s).
- Rewinding quality that does not deteriorate at high speeds.
- Pneumatic pressure adjustment (adjustment of the pressure on the bobbin being rewound and the tape that performs the unwinding operation).
- Intelligent control system with PLC controller.
- Touchscreen LCD control panel.
- Electronic regulator system.
- Easy and comfortable user-friendly design.
- Automatic calibration system thanks to the PLC control system.
- Thanks to the PLC control system, it constantly monitors the difference between the set meter and the rewound meter. If desired, it intervenes and automatically performs the calibration adjustment.
