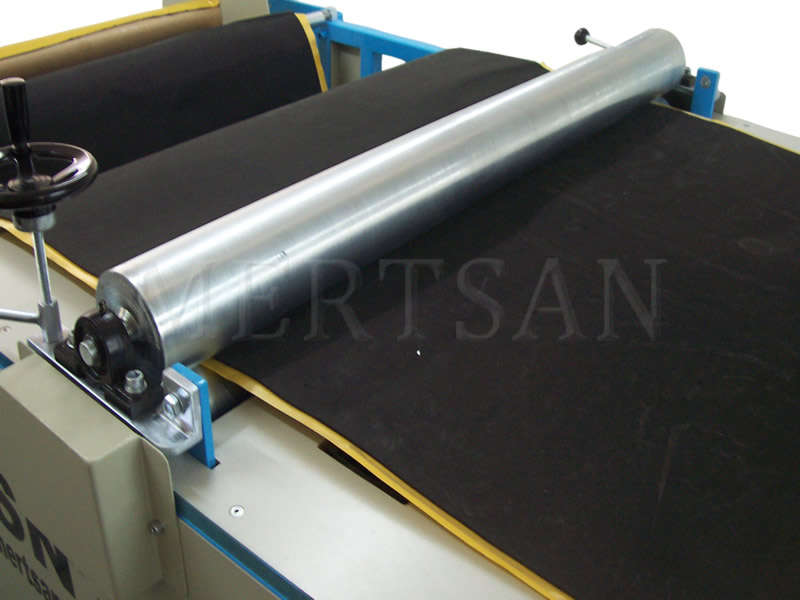

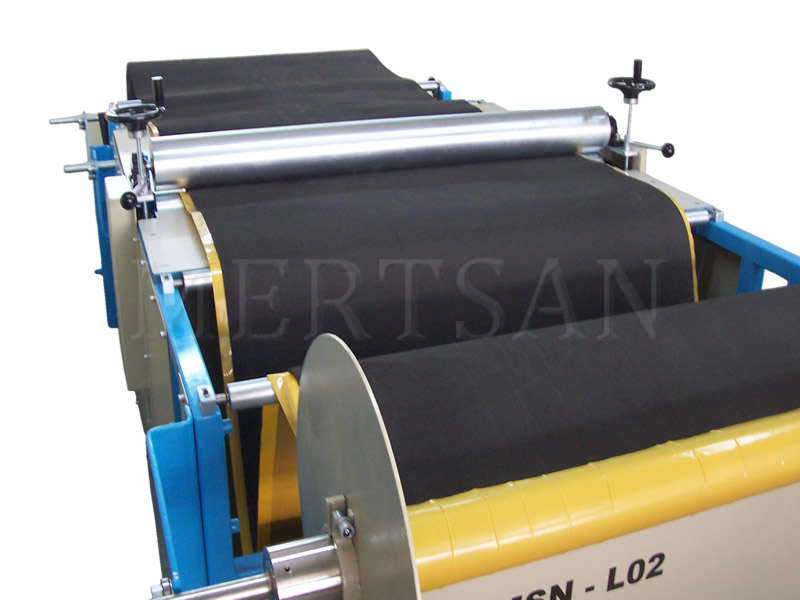

Mertsan Laminating Machine, This is an industrial solution developed for the controlled bonding of materials such as sponge, double-sided tape, and similar materials. With a working width of up to one meter, an automatic tensioning system, and adjustable heaters, it adapts to different production needs. The pneumatic shaft winding spindle, tight winding structure, and manual edge adjustment ensure smooth and balanced product output. The PLC control system and 7-inch touch panel provide the operator with ease of use and precise adjustment. The machine delivers efficient, reliable, stable, and high-quality production with a lamination speed of five meters per minute.
Opener Unit Specifications :
| Maximum bobbin width : | 100 cm |
| Maximum bobbin diameter : | 80 cm |
| Maximum bobbin weight : | 150 kg |
| Standard bobbin inner diameter : | 76 mm |
Rewinding Unit Specifications :
| Maximum bobbin width. : | 100 cm |
| Minimum bobbin diameter : | 30 cm |
| Maximum bobbin diameter. : | 76 mm |
| Maximum bobbin diameter : | 80 cm |
Technical Details :
| Physical dimensions : | 200 x 140 x 140 cm |
| Operating voltage : | 220 V, 50/60 Hz (+/- 10%) |
| Engine power : | 2.2 kW 3P AC Motor |
| Heater Power : | 2 kW |
| Lamination Speed : | 5 m/min |
Lamination can be done up to 1 meter wide.
Automatic tensioning system.
Separate hangers for foam and double-sided tape.
Winding system for the finished laminated product.
Adjustable heaters that can be activated as needed during lamination.
Manual edge adjustment system.
Tight winding onto the core for slitting.
Pneumatic shaft winding spindle.
Lamination pressure adjustment.
PLC electronic control system.
7-inch touchscreen user panel.
